Dolby® D/D+/E Decoder & Metadata Generator - C8621
The C8621 is a module designed for the C8000 modular processing solution offering Dolby® decoding features as well as Metadata Management for up to eight audio channels in a single Dolby® feed.
The C8621 features an unbalanced AES input for Dolby® encoded audio streams. Automatic format detection allows for seamless recognition and decoding of Dolby D / D+ / E streams along with automatic pass through for PCM signals. The module also supports Pro Logic II decoding and encoding and provides full support for Dolby® Metadata transport. Other highlights include latency compensation and full down mix output monitoring.
Key Features
- Dolby D / D+ / E Decoding
- Supports Audio Description
- Pro Logic II Decoding and Encoding
- Metadata Generator
- Unbalanced AES input for Dolby® encoded signals
- RS 485 RDDD-6 Metadata I/O
- 16 / 20 / 24 Bit Audio Data Format
- Automatic Format Detection (Dolby® E, D, D plus, PCM)
- Automatic PCM Pass Through to ch1/2 Output
- Unique Dolby® Metadata Transport (via AES USER Bit)
- 2ch Delay for PCM Audio and/or metadata
- Program Monitoring (Downmix to mono, Lo/Ro, Lt/Rt)
- Program-specific Metadata Display
Product Brief
Manual
Related Products
-
C8000 - Feature Set- 19” frame based fully modular system (1Ru or 3RU frames)
- Wide range of audio processing functionality
- Extensive support for Dolby® decoding and encoding
- SDI interface for embedding/de-embedding of audio, Metadata transport and lip sync control
- Network based automation, control, management and measurement
-
C8912
C8000 Frame 1RU- 19" / 1RU modular chassis, 240mm depth
- Up to 3x 8HP or 6x 4HP space available (one side)
- Front or rear rack mounting
- Redundant internal power supplies, IEC sockets with mains filters
-
C8922
C8000 Frame 3RU 76HP- 19"/ 3RU modular chassis, 240mm depth
- Up to 76HP space available (one side)
- Single internal power supply, IEC socket with mains filter and power switch
-
C8932
C8000 Frame 3RU 76 + 72HP- 19" / 3RU modular chassis, 435mm depth
- Up to 76HP (front) and 72HP (rear) space available
- Dual internal power supplies, IEC sockets with mains filters and power switches
-
C8934
C8000 Frame 3RU 64/76; 4 independent sync areas- 4 independent bus-isolated backplane sections (each one with 8 slots back to back)
- Local Audio Clock Distribution and Busses for each Section
- Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
- Redundant, Load Balanced Power Supplies with Individual Mains Input
- 19" modular chassis, 3RU, 435mm depth
-

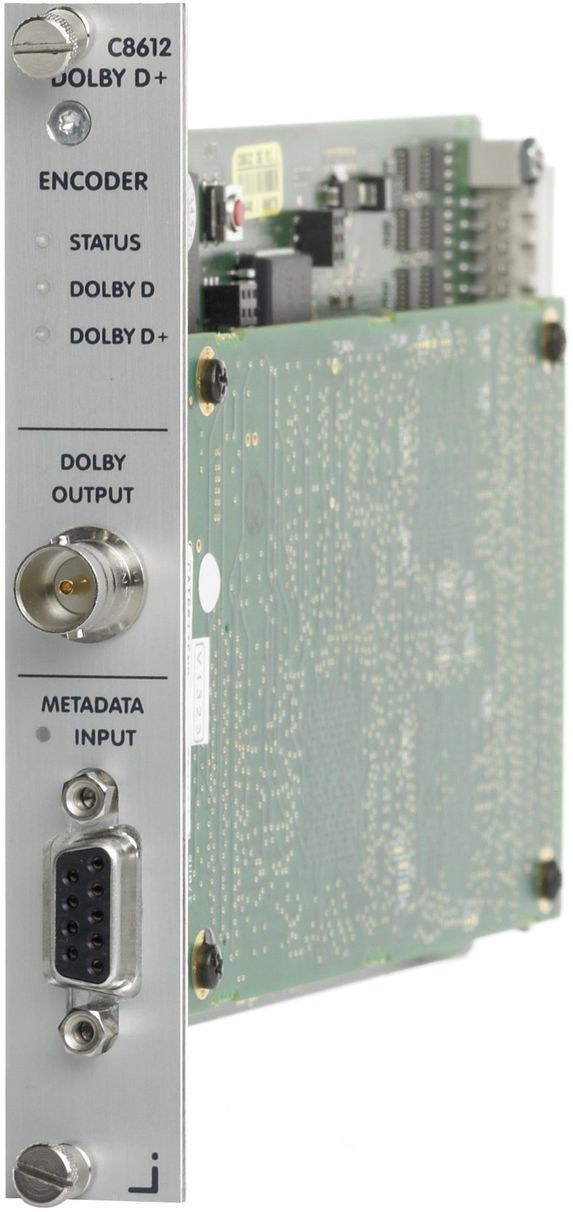

C8612
