Microphone In

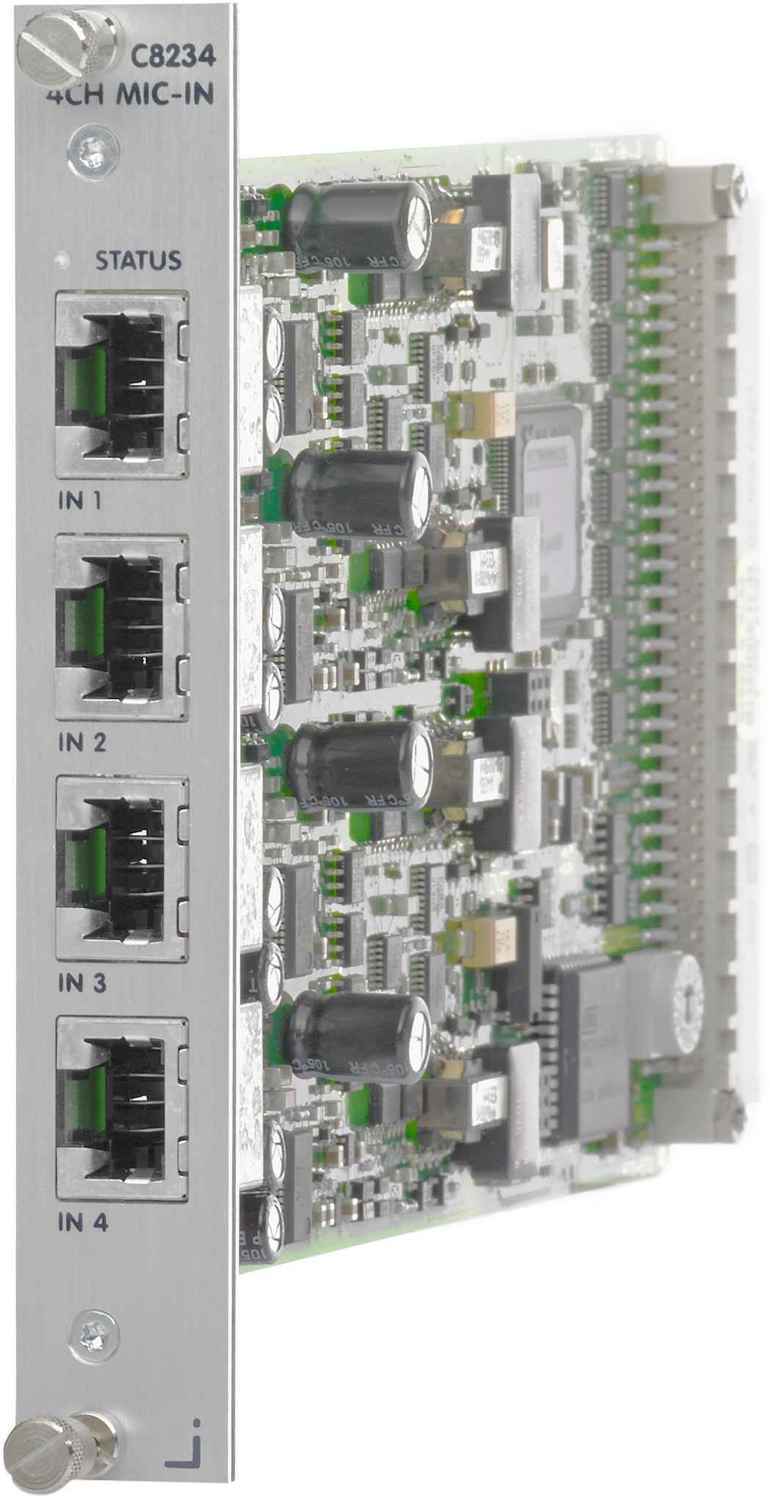

The C8234 is a Microphone module designed for the C8000 modular processing solution providing 4 high quality MIC / Line inputs.
Key Features
- 4 High Quality MIC / Line Inputs
- 24bit A/D-Converter
- 48V Phantom Power
- Floating Balanced Analog Inputs
- Digitally Controlled Gain 0..+65dB
- Max. Line Input Level +20dBu
- Pad Attenuation -10dB (Line)
Manual
